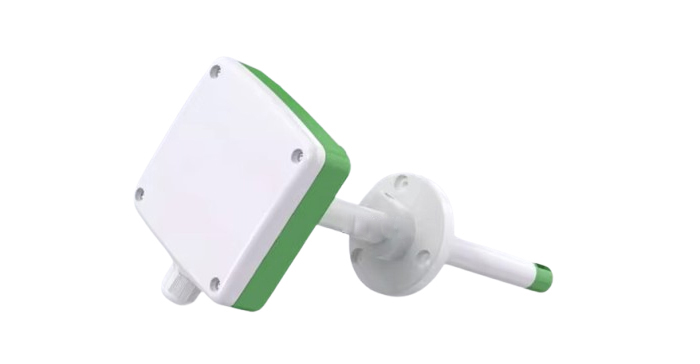

Duct Flow Measurement : Optimizing HVAC and Airflow Systems

The Importance of Duct Flow Measurement

  • HVAC System Balancing : Ensuring proper airflow distribution throughout a building for consistent temperature and comfort.
  • Energy Efficiency : Identifying and addressing airflow restrictions or leaks that lead to wasted energy.
  • Indoor Air Quality (IAQ): Verifying adequate ventilation rates to remove pollutants and maintain a healthy indoor environment.
  • System Diagnostics : Troubleshooting HVAC problems such as low airflow, excessive noise, or uneven temperatures.
  • Commissioning and Testing : Verifying that HVAC systems are performing as designed.
  • Process Control : Monitoring airflow in industrial processes that require specific ventilation or exhaust rates.

Duct Flow Measurement Technologies

  • Pitot Tubes : [Link to a separate page for Pitot Tubes, if you have one, or describe them briefly here] Measure the difference between total pressure and static pressure to determine air velocity. Simple, reliable, and cost-effective, but require traversing the duct for accurate average flow measurement.
  • Anemometers (Hot-Wire and Vane):
    • Hot-Wire Anemometers : Measure air velocity based on the cooling effect of airflow on a heated wire. Very sensitive, good for low flow rates.
    • Vane Anemometers : Use a rotating vane to measure air velocity. More robust than hot-wire anemometers.
  • Differential Pressure Transmitters : Used in conjunction with Pitot tubes or other flow elements (e.g., averaging Pitot tubes) to provide a continuous flow signal.
  • Vortex Flowmeters : Can be used in larger ducts for measuring airflow.
  • Ultrasonic flowmeter :

Key Considerations

  • Duct Size and Shape : The size and shape of the duct will influence the choice of measurement technology.
  • Airflow Velocity Range : Select an instrument with an appropriate velocity range.
  • Accuracy Requirements : Consider the required accuracy level for your application.
  • Access to the Duct : Some methods require access to the inside of the duct, while others can be used externally.
  • Environmental Conditions : Temperature, humidity, and the presence of dust or other contaminants can affect measurement accuracy.

Why Choose Pioneer for Duct Flow Measurement ?

Comprehensive Solutions, Application Expertise, High-Quality Products, Expert Support, Competitive Pricing
