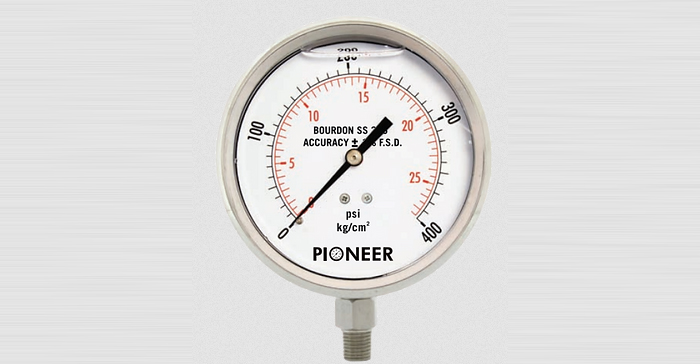

Weather Proof Pressure Gauge

Home Weather Proof Pressure Gauge
Weather Proof Pressure Gauge
Request A Quote

Special Features

  • External zero adjustment (optional)
  • Stainless steel case & measuring system
  • Socket directly welded to case
  • Dry and liquid filled version
  • Standard followed EN 837-1 (for NS 100, 150 & 250 mm)
  • CE marking (as per PED 97/23/EC) (for NS 100 mm & 150 mm)

Application

  • Food & beverage
  • Hydro-cleaning machines
  • Pharmaceutical
  • Presses
  • Cryogenics
  • Engine compressors
  • Pumps
  • Turbines
  • Diesel engines
  • Suitable for corrosive
  • Chemical & Petrochemical industries
  • Refrigerating plants, Conventional & nuclear power plants
  • Environments & gaseous or liquid media that will not obstruct the pressure system

TECHNICAL SPECIFICATIONS

Standard Dial Size : 100 mm, 150 mm, 200 mm, 250 mm

Range 0 - 1, 0 - 1.6, 0 - 2.5, 0 - 4, 0 - 6, 0 - 10,
0 - 16, 0 - 25, 0 - 40, 0 - 60, 0 - 100,
0 - 160, 0 - 250, 0 - 400, 0 - 600 kg / cm²
& Vacuum Range 0 - 760 mm - Hg & Compound Ranges
Units kg / cm² / psi, kg / cm², bar
Accuracy ±1% FSD as per IS 3624
Over Range 130% F.S.
Protection IP 65 / IP 67
Mech. Shock 'G' Value 15 G, 6 msec
Storage Temperature -20 D.C. to 60 D.C.
Case Material SS 304. Weather Proof, Dust Proof
Dial Aluminum, Black Graduation on White Background
Windows Shutterproof Glass, Toughened glass
System SS 316 Bourdon with SS 316 Socket
Movement SS 304
Zero Adjustment Micrometer Pointer, Zero Adjustment Type
Blowoff Disc Provided at Back of Case
Connetion 3/8" BSP, 3/8" NPT, 1/2" BSP. 1/2" NPT, M20 x 1.5
Mounting Direct Mounting Bottom Entry
Surface Mounting Bottom Entry
Flush Mounting Back Connection with Clamps
Panel Mounting Back Entry
Option Without, Glycerine Filled
